In my previous post I described how to setup a MySQL environment on TrueNAS (or via docker more generally). I wanted to kick the tires on the database by loading it with an interesting dataset. I chose IMDb’s public dataset. This post details the approach I took to ingesting the data and some basic queries to check that everything works.
IMDb Non-Commercial Datasets#

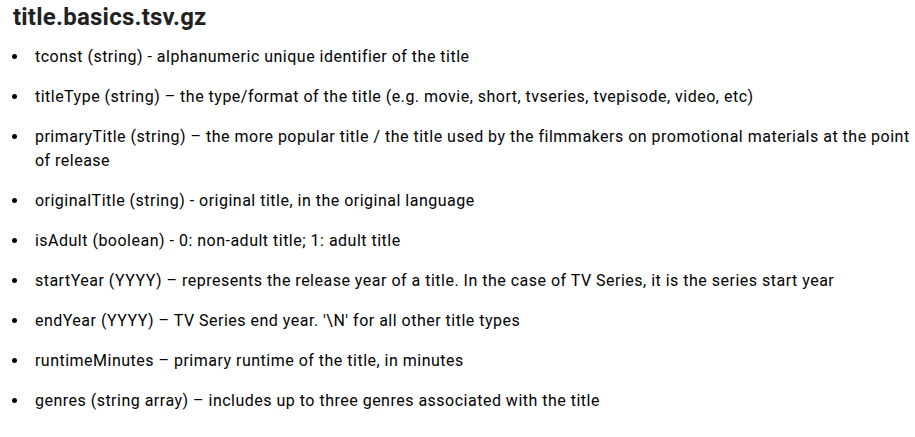

The datasets come as compressed TSV (tab separated) files, along with a description of each column:
Once downloaded and uncompressed, this was the set of files and sizes to work with:
> ls -lh *.tsv
-rw-r--r-- 1 vernon vernon 862M Sep 5 15:21 name.basics.tsv
-rw-r--r-- 1 vernon vernon 2.5G Sep 5 15:21 title.akas.tsv
-rw-r--r-- 1 vernon vernon 981M Sep 5 15:22 title.basics.tsv
-rw-r--r-- 1 vernon vernon 375M Sep 5 15:22 title.crew.tsv
-rw-r--r-- 1 vernon vernon 229M Sep 5 15:22 title.episode.tsv
-rw-r--r-- 1 vernon vernon 4.0G Sep 5 15:22 title.principals.tsv
-rw-r--r-- 1 vernon vernon 27M Sep 5 15:22 title.ratings.tsv
The description gives the expected data type for each column, but it doesn’t say how long strings ought to be. Since the dataset is static, I first wrote a program to parse the data and find the maximum length for each column. The program also checks for empty values and counts the total rows. This info was useful in the following step of defining the database tables.
import glob
from dataclasses import dataclass, field
@dataclass
class Column:
name: str
has_nulls: bool = False
max_width: int = 0
@dataclass
class Table:
name: str
columns: dict = field(default_factory=dict)
rows: int = 0
def main():
fnames = glob.glob("*tsv")
tables = {}
for fname in fnames:
table = Table(fname)
with open(fname, encoding="utf-8") as f:
keys = f.readline().strip().split("\t")
for key in keys:
table.columns[key] = Column(key)
for line in f:
row = line.strip().split("\t")
for i, item in enumerate(row):
k = keys[i]
if item is None:
print("error", len(row), row)
continue
if item == "\\N" or item is None:
table.columns[k].has_nulls = True
continue
if len(item) > table.columns[k].max_width:
table.columns[k].max_width = len(item)
table.rows += 1
tables[fname] = table
print(table.name)
for v in table.columns.values():
print(f"\t{v}")
print(f"\t{table.rows} rows")
if __name__ == '__main__':
main()
It took several minutes to run, but eventually gave me the data I was looking for:
> python parse_tsv.py
name.basics.tsv
Column(name='nconst', has_nulls=False, max_width=10)
Column(name='primaryName', has_nulls=True, max_width=105)
Column(name='birthYear', has_nulls=True, max_width=4)
Column(name='deathYear', has_nulls=True, max_width=4)
Column(name='primaryProfession', has_nulls=True, max_width=66)
Column(name='knownForTitles', has_nulls=True, max_width=43)
14692473 rows
title.akas.tsv
Column(name='titleId', has_nulls=False, max_width=10)
Column(name='ordering', has_nulls=False, max_width=3)
Column(name='title', has_nulls=False, max_width=831)
Column(name='region', has_nulls=True, max_width=4)
Column(name='language', has_nulls=True, max_width=3)
Column(name='types', has_nulls=True, max_width=20)
Column(name='attributes', has_nulls=True, max_width=62)
Column(name='isOriginalTitle', has_nulls=False, max_width=1)
53055800 rows
title.basics.tsv
Column(name='tconst', has_nulls=False, max_width=10)
Column(name='titleType', has_nulls=False, max_width=12)
Column(name='primaryTitle', has_nulls=False, max_width=458)
Column(name='originalTitle', has_nulls=False, max_width=458)
Column(name='isAdult', has_nulls=False, max_width=1)
Column(name='startYear', has_nulls=True, max_width=4)
Column(name='endYear', has_nulls=True, max_width=4)
Column(name='runtimeMinutes', has_nulls=True, max_width=7)
Column(name='genres', has_nulls=True, max_width=32)
11884044 rows
title.crew.tsv
Column(name='tconst', has_nulls=False, max_width=10)
Column(name='directors', has_nulls=True, max_width=5320)
Column(name='writers', has_nulls=True, max_width=14089)
11884044 rows
title.episode.tsv
Column(name='tconst', has_nulls=False, max_width=10)
Column(name='parentTconst', has_nulls=False, max_width=10)
Column(name='seasonNumber', has_nulls=True, max_width=4)
Column(name='episodeNumber', has_nulls=True, max_width=5)
9150593 rows
title.principals.tsv
Column(name='tconst', has_nulls=False, max_width=10)
Column(name='ordering', has_nulls=False, max_width=2)
Column(name='nconst', has_nulls=False, max_width=10)
Column(name='category', has_nulls=False, max_width=19)
Column(name='job', has_nulls=True, max_width=290)
Column(name='characters', has_nulls=True, max_width=463)
94519567 rows
title.ratings.tsv
Column(name='tconst', has_nulls=False, max_width=10)
Column(name='averageRating', has_nulls=False, max_width=4)
Column(name='numVotes', has_nulls=False, max_width=7)
1609544 rows
Creating the tables#
I created one table per file, using the data from the parsing program to decide column widths and whether a column should allow NULL values. I also tried to use sensible primary keys so that joins and queries would be fast later on.
use movies;
CREATE TABLE name_basics
(
nconst VARCHAR(10) PRIMARY KEY,
primary_name VARCHAR(255),
birth_year INT,
death_year INT,
primary_profession JSON,
known_for JSON
);
CREATE TABLE title_basics
(
tconst VARCHAR(10) PRIMARY KEY,
movie_type VARCHAR(255),
primary_title VARCHAR(1024),
original_title VARCHAR(1024),
is_adult BOOLEAN,
start_year INT NOT NULL,
end_year INT,
runtime_minutes INT,
genres JSON
);
CREATE TABLE title_akas
(
tconst VARCHAR(10),
ordering INT,
title VARCHAR(1024),
region VARCHAR(255),
language VARCHAR(255),
types JSON,
attributes JSON,
is_original_title BOOLEAN,
PRIMARY KEY (movie_id, ordering)
) ;
CREATE TABLE title_crew
(
tconst VARCHAR(10) PRIMARY KEY,
directors JSON,
writers JSON
);
CREATE TABLE title_episodes
(
tconst VARCHAR(10) PRIMARY KEY,
parent_tconst VARCHAR(10),
season_num INT,
episode_num INT
);
CREATE TABLE title_principals
(
tconst VARCHAR(10),
ordering INT,
nconst VARCHAR(10),
category VARCHAR(255),
job VARCHAR(512),
characters JSON,
PRIMARY KEY (movie_id, ordering)
);
CREATE TABLE title_ratings
(
tconst VARCHAR(10) PRIMARY KEY,
average_rating DECIMAL(3, 1),
num_votes INT
);
Ingesting the data#
With the tables created, I needed another program to iterate through the TSV files and insert each row into the appropriate table.
import json
import re
import sys
import time
import mysql.connector
# from stackoverflow
# https://stackoverflow.com/questions/1175208/elegant-python-function-to-convert-camelcase-to-snake-case
def camel_to_snake(name: str) -> str:
pattern = re.compile(r'(?<!^)(?=[A-Z])')
name = pattern.sub('_', name).lower()
return name
def fname_to_table(fname: str) -> str:
parts = fname.split(".")
return "_".join(parts[:-1])
def fields_to_columns(fields: list) -> str:
result = "("
result += ",".join(map(lambda x: f"`{camel_to_snake(x)}`", fields))
result += ")"
return result
def format_insert_stmt(fname, fields):
tbl = fname_to_table(fname)
cols = fields_to_columns(fields)
vals = ", ".join(["%s" for _ in range(len(fields))])
return f"INSERT INTO {tbl} {cols} VALUES ({vals})"
def format_value(fname, column, data):
if column in table_metadata[fname]:
return table_metadata[fname][column](data)
else:
return check_for_null(data)
check_for_null = lambda s: None if s == "\\N" else s
to_json_str = lambda s: None if (s == "\\N" or s is None) else json.dumps(s.split(","))
files = [
"name.basics.tsv",
"title.akas.tsv",
"title.basics.tsv",
"title.crew.tsv",
"title.episode.tsv",
"title.principals.tsv",
"title.ratings.tsv",
]
table_metadata = {
"name.basics.tsv": {
"primaryProfession": to_json_str,
"knownForTitles": to_json_str,
"rows": 14692473
},
"title.akas.tsv": {
"types": to_json_str,
"attributes": to_json_str,
"rows": 53055800
},
"title.basics.tsv": {
"genres": to_json_str,
"filter": lambda d: d[4] == "1", # only keeps isAdult == 0
"rows": 11884044
},
"title.crew.tsv": {
"directors": to_json_str,
"writers": to_json_str,
"rows": 11884044
},
"title.episode.tsv": {
"rows": 9150593
},
"title.principals.tsv": {
"characters": to_json_str,
"rows": 94519567
},
"title.ratings.tsv": {
"rows": 1609544
},
}
def main():
try:
mydb = mysql.connector.connect(
host="<redacted>",
user="<redacted>",
passwd="<super-redacted>",
database="movies"
)
mycursor = mydb.cursor()
for fname in files:
with open(fname) as f:
fields = f.readline().strip().split("\t")
columns = list(map(lambda x: f"`{camel_to_snake(x)}`", fields))
num_rows = table_metadata[fname]["rows"]
sql = format_insert_stmt(fname, fields)
rows = 0
for line in f:
rows += 1
row = line.strip().split("\t")
if "filter" in table_metadata[fname]:
if table_metadata[fname]["filter"](row):
continue
vals = []
for i, item in enumerate(fields):
vals.append(format_value(fname, item, row[i]))
mycursor.execute(sql, tuple(vals))
if rows % 100000 == 0:
mydb.commit()
progress = 100 * rows / num_rows
print(f"[ {fname} ]( {int(time.time())} ): {progress:.2f} %")
except mysql.connector.Error as err:
print(err)
sys.exit(1)
finally:
if 'mydb' in locals() and mydb.is_connected():
mycursor.close()
mydb.close()
if __name__ == "__main__":
main()
I chose to commit to the db every 100000 rows, but even so, this process took quite a while, a couple of hours IIRC. I wasn’t too concerned with optimizing any part of the ingest as this was a one time thing on a static dataset.
Let’s query some data#
I used Grafana to query the database. In the last blog post I created a data source for the mysql
database and created a grafana database user that only has select permissions.

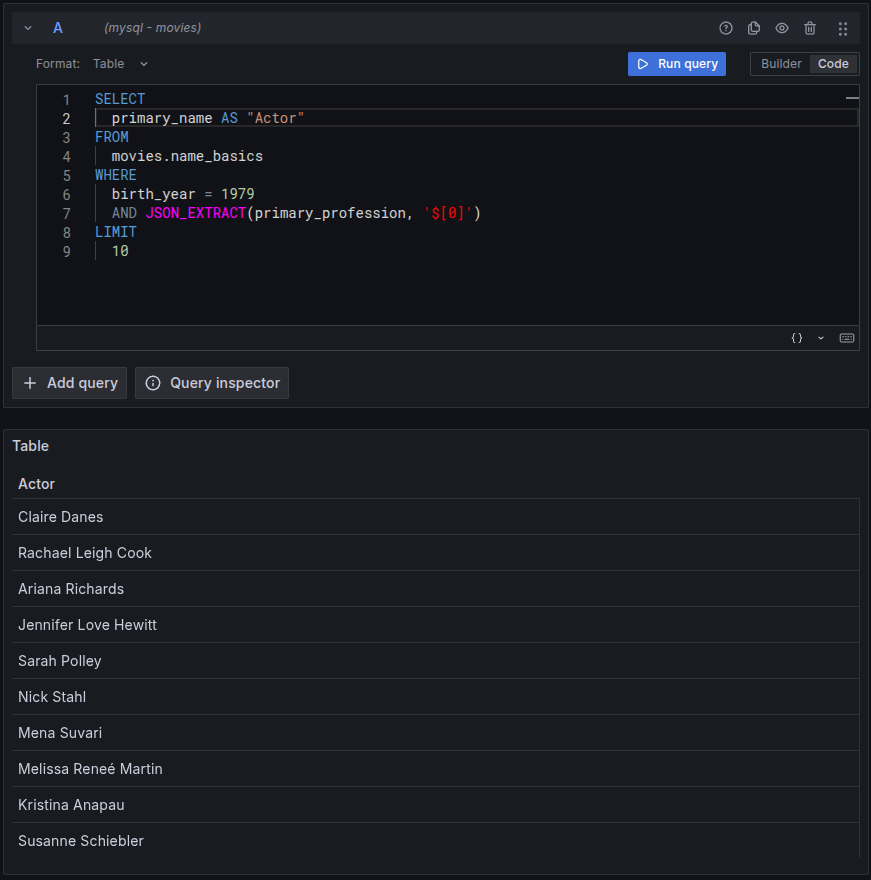

As a quick test let’s see a few actors who where born in 1979:
That worked nicely, but this is something that’s easy to search on IMDb itself. Let’s try something that would be more difficult to find on the website, and that requires some table joins. I think the 90s were a great decade for comedy, especially the mid-90s. Let’s craft a query that will tell us the top 10 rated US comedies from 1994-1996:
SELECT
tb.primary_title AS "Title",
tb.start_year AS "Year",
tr.average_rating AS "Rating",
tr.num_votes AS "Votes",
nb.primary_name AS "Starring"
FROM title_basics tb
JOIN title_ratings tr ON tb.tconst = tr.tconst
JOIN title_principals tp ON tb.tconst = tp.tconst
JOIN name_basics nb ON tp.nconst = nb.nconst
WHERE tb.start_year BETWEEN 1994 AND 1996
AND tb.title_type = "movie"
AND JSON_LENGTH(tb.genres) = 1
AND JSON_EXTRACT(tb.genres, "$[0]") = "Comedy"
AND tp.ordering = 1 -- Get the first/main actor
AND tp.category = 'actor' -- Ensure it's an actor, not director/writer
AND tr.num_votes >= 10000 -- Minimum vote threshold
AND EXISTS (
SELECT 1
FROM title_akas ta
WHERE ta.tconst = tb.tconst
AND ta.region = 'US'
) -- Filter for movies that have US region entries
ORDER BY tr.average_rating DESC, tr.num_votes DESC
LIMIT 10;

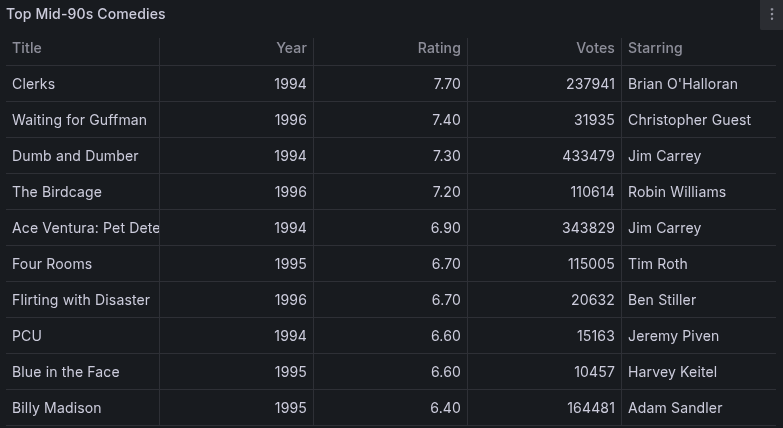

This gives us the result
Nice. This was fun.
